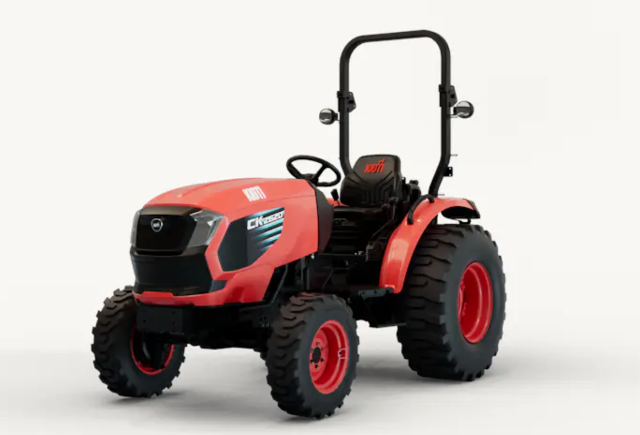

FOUR WHEEL DRIVE
Engaged by a single lever, 4WD is standard on the CK Series tractors.
DUAL PEDAL, 2 RANGE HST
Easier and more comfortable than rocker pedals.
HYDRAULIC PTO
Hydraulic PTO clutch offers great durability and ease of use. Simply rotate the knob to engage or disengage the PTO.
MANUAL & HST TRANSMISSION
The manual transmission model features 9F/3R speeds. The HST model utilizes a performance proven, heavy - duty HST that delivers power smoothly and efficiently. With the HST drive your hands remain free for steering and implement control.
FOLDABLE ROPS
The standard fold-down roll bar makes it quick and easy to maneuver in low clearance areas.
SINGLE LEVER JOYSTICK
The joystick provides single-lever control for the loader functions. When released, it returns to neutral, stopping the loader in its current position. A float position allows the bucket to float freely over the ground surface.
TILT STEERING WHEEL
Easily adjusts with a push of a lever for personalized comfort. (SE models only)
REAR HYDRAULIC REMOTES
Enables fingertip control of rear hydraulic implements. (SE models only)
-
CK2620
ENGINE
Engine Gross (hp): 24.5
PTO @ Rated PTO rpm (hp): 19.5
Displacement (cu. in.): 100.5
Rated Revolution (RPM): 2400
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Clutch: Dry Dual Stage
Transmission: Manual
No. of Speeds: 9F/3R
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.): 1,631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of ROPS) (in): 92.91
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
CK2620 HST Specs
ENGINE
Engine Gross (hp): 24.5
PTO @ Rated PTO rpm (hp): 19.5
Displacement (cu. in.): 100.5
Rated Revolution (RPM): 2400
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Transmission: Hydrostatic
No. of Speeds: Infinite, 3 Range
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.):1631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of ROPS) (in): 92.91
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
CK2620SE HST Cab Specs
ENGINE
Engine Gross (hp): 24.5
PTO @ Rated PTO rpm (hp): 19.5
Displacement (cu. in.): 100.5
Rated Revolution (RPM): 2400
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Transmission: Hydrostatic
No. of Speeds: Infinite, 3 Range
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.):1631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of ROPS) (in): 92.52
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
CK3520 Specs
ENGINE
Engine Gross (hp): 34.9
PTO @ Rated PTO rpm (hp): 30.9
Displacement (cu. in.): 111.4
Rated Revolution (RPM): 2600
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Clutch: Dry Dual Stage
Transmission: Manual
No. of Speeds: 9F/3R
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.): 1,631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of ROPS) (in): 92.91
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
CK3520SE Specs
ENGINE
Engine Gross (hp): 34.9
PTO @ Rated PTO rpm (hp): 30.9
Displacement (cu. in.): 111.4
Rated Revolution (RPM): 2600
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Clutch: Dry Single Stage
Transmission: Manual
No. of Speeds: 9F/3R
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.): 1,631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of ROPS) (in): 92.91
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
CK3520 HST Specs
ENGINE
Engine Gross (hp): 34.9
PTO @ Rated PTO rpm (hp): 30.9
Displacement (cu. in.): 111.4
Rated Revolution (RPM): 2600
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Transmission: Hydrostatic
No. of Speeds: Infinite, 3 Range
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.): 1,631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of ROPS) (in): 92.91
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
CK3520SE HST Specs
ENGINE
Engine Gross (hp): 34.9
PTO @ Rated PTO rpm (hp): 30.9
Displacement (cu. in.): 111.4
Rated Revolution (RPM): 2600
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Transmission: Hydrostatic
No. of Speeds: Infinite, 3 Range
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.): 1,631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of ROPS) (in): 92.91
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
CK2520SE HST Cab Specs
ENGINE
Engine Gross (hp): 34.9
PTO @ Rated PTO rpm (hp): 30.9
Displacement (cu. in.): 111.4
Rated Revolution (RPM): 2600
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Transmission: Hydrostatic
No. of Speeds: Infinite, 3 Range
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.): 1,631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of Cab) (in): 92.52
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
CK4020 Specs
ENGINE
Engine Gross (hp): 39.6
PTO @ Rated PTO rpm (hp): 34.8
Displacement (cu. in.): 111.4
Rated Revolution (RPM): 2600
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Clutch: Dry Dual Stage
Transmission: Manual
No. of Speeds: 9F/3R
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.): 1,631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of ROPS) (in): 92.91
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
CK4020SE Specs
ENGINE
Engine Gross (hp): 39.6
PTO @ Rated PTO rpm (hp): 34.8
Displacement (cu. in.): 111.4
Rated Revolution (RPM): 2600
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Clutch: Dry Single Stage
Transmission: Manual
No. of Speeds: 9F/3R
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.): 1,631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of ROPS) (in): 92.91
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
CK4020H Specs
ENGINE
Engine Gross (hp): 39.6
PTO @ Rated PTO rpm (hp): 34.8
Displacement (cu. in.): 111.4
Rated Revolution (RPM): 2600
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Transmission: Hydrostatic
No. of Speeds: Infinite, 3 Range
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.): 1,631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of ROPS) (in): 92.91
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
CK4020SE HST Specs
ENGINE
Engine Gross (hp): 39.6
PTO @ Rated PTO rpm (hp): 34.8
Displacement (cu. in.): 111.4
Rated Revolution (RPM): 2600
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Transmission: Hydrostatic
No. of Speeds: Infinite, 3 Range
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.): 1,631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of ROPS) (in): 92.91
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
CK4020SE HST Cab Specs
ENGINE
Engine Gross (hp): 39.6
PTO @ Rated PTO rpm (hp): 34.8
Displacement (cu. in.): 111.4
Rated Revolution (RPM): 2600
Fuel Tank Capacity (US. gal.): 9.0
DRIVE TRAIN
Transmission: Hydrostatic
No. of Speeds: Infinite, 3 Range
Differential Lock: Rear Standard
PTO Type:Transmission
Mid PTO: 2,000 (option)
Rear PTO: Standard (540 rpm)
Brakes: Wet, Multi-Disc
4WD Type: Mechanical Engagement
HYDRAULIC SYSTEM
Pump: Gear
Pump Capacity (Max. Flow Rate) (GPM): 11.73
3-Point Hitch: Category 1
Maximum Lifting Capacity (24" aft. of hitch) (lb.): 1,631
Hydraulic Lift Control System: Position
Steering: Power Steering
DIMENSIONS
Overall Length (Includes 3-pt Hitch.) (in): 120.87
Overall Width (Minimum Tread) (in.): 54.53
Overall Height (From Top of Cab) (in): 92.52
Wheelbase (in.): 65.75
Tread Front (AG.) (in.): 7-16
Tread Rear (AG.) (in.): 11.2-24
-
Loader Specs
FRONT END LOADER – KL4030
Maximum Lift Height (to Pivot Pin): 98.4Clearance w/ Bucket Level: 93.0
Clearance w/ Bucket Dumped: 79.1
Reach at Maximum Height: 27.2
Reach w/ Bucket on Ground: 62.2
Maximum Rollback Angle: 28
Digging Depth Below Grade: 5.3
Overall Height (in Carry Position): 49.6 in.
Depth of Bucket (to back of inner shell): 19.9 in.
Height of Bucket: 20.7 in.
Length of Bucket (to pivot pin): 26.9
Lift of Bucket Capacity to Full Height (at Pivot Pins): 1835 lbs.
Breakout Force (at Pivot Pins): 3464 lbs.
Relief Valve Setting (Loader Control Valve) 2,560 psi
Bucket Capacity (Heaped): 9.39 - 10.10 cu. ft.
FRONT END LOADER – KL4030C
Maximum Lift Height (to Pivot Pin): 98.4
Clearance w/ Bucket Level: 88.0
Clearance w/ Bucket Dumped: 74.0
Reach at Maximum Height: 11.3
Reach w/ Bucket on Ground: 63.4
Maximum Rollback Angle: 28.5
Digging Depth Below Grade: 4.8
Overall Height (in Carry Position): 53.1 in.
Depth of Bucket (to back of inner shell): 19.1in.
Height of Bucket: 19.7 in.
Length of Bucket (to pivot pin): 24.3
Lift of Bucket Capacity to Full Height (at Pivot Pins): 1969 lbs.
Breakout Force (at Pivot Pins): 2989 lbs.
Relief Valve Setting (Loader Control Valve) 2,567 psi
Bucket Capacity (Heaped): 9.39 - 10.10 cu. ft.
-
Brochure
