Components You Know and Trust Powered This Loader Powered by a Yanmar 4TNV98C Diesel Engine
High Flow Hydraulics Up to 31 GPM
Loaded With Features Such as Auto 2-Speed Travel and Z-Pattern Tracks

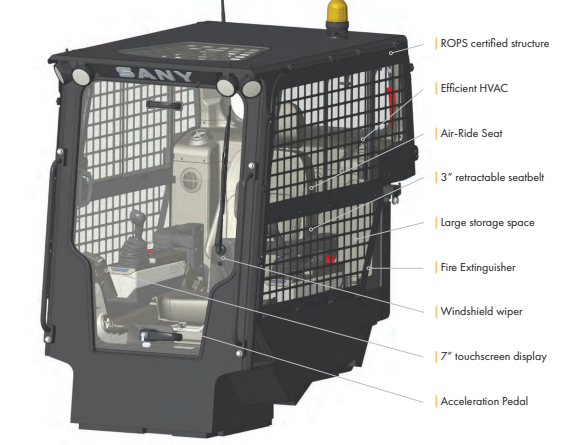

Designed For All Day Comfort With Air-Ride Seat w/ 10 Points of Seat Adjustments, HVAC, LCD Display, and MORE

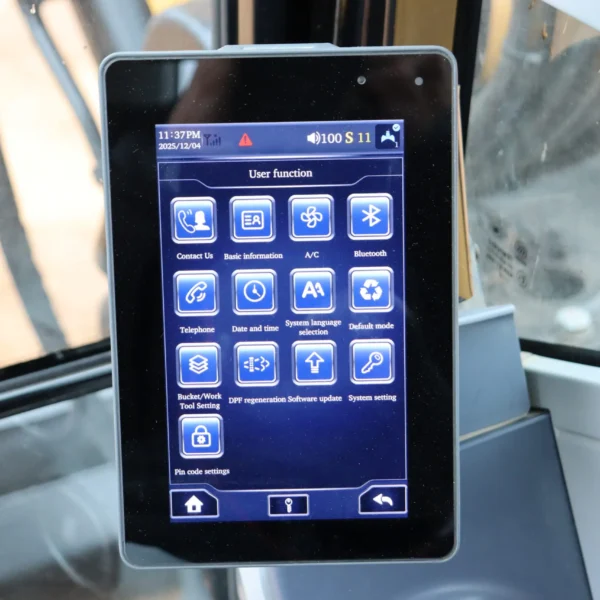

Perform Hundreds of Tasks and View Important Data All Through ONE Display
Safety Prioritized With 14+ Features Of Standard Safety Equipment
Technical Specifications
Engine Model: Yanmar 4TNV98CT
Max Rated Power: 73 hp
Peak Torque: 206 lbf-ft at 1,560 rpm
Aspiration: Turbocharged
Emissions : Tier 4 Final/Stage V
Cycle Time (Raise/Lower/Dump): 9 sec
Loader Hydraulic Pressure: 3,336 psi
Battery Voltage: 12 V
Diesel Tank: 26.4 gal
Rated Operating Capcity: 2,579 lbs
Tipping Load: 7,368 lbs
Operating Weight: 10,318 lbs
Max Breakout Force: 5,733 lbf
Lift Geometry: Vertical Lift
One Speed: 5.4 mph
Two Speed: 8.5 mph
Rubber Track Size: 320 mm, 400 mm
Standard Flow: 21 gpm
High Flow: 31.6 gpm
Cab: ROPS & FOPS
Overall Dimensions
Maximum Overall Height: 156"
Bucket Pin Height at Maximum Lift: 120.5"
Clearance at Maximum Lift and Dump: 92"
Ground Clearance: 9"
Track Length on Ground: 57.5"
Bumper Overhang Behind Rear Axle: 34.8"
Maximum Dump Angle: 40°
Rollback Angle of Bucket on Ground: 30°
Departure Angle: 28°
Height to Top of Cab: 82.7"
Length with Bucket on Ground: 142.1"
Reach at Maximum Lift and Dump: 42"
Length Without Bucket: 113.6"
Turning Radius From Center-Bucket: 82.7"
Width with Bucket: 72"
Width without Bucket: 70"
