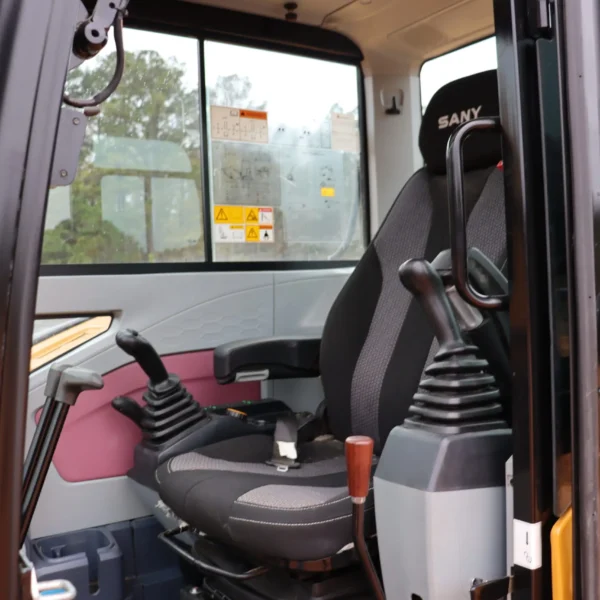

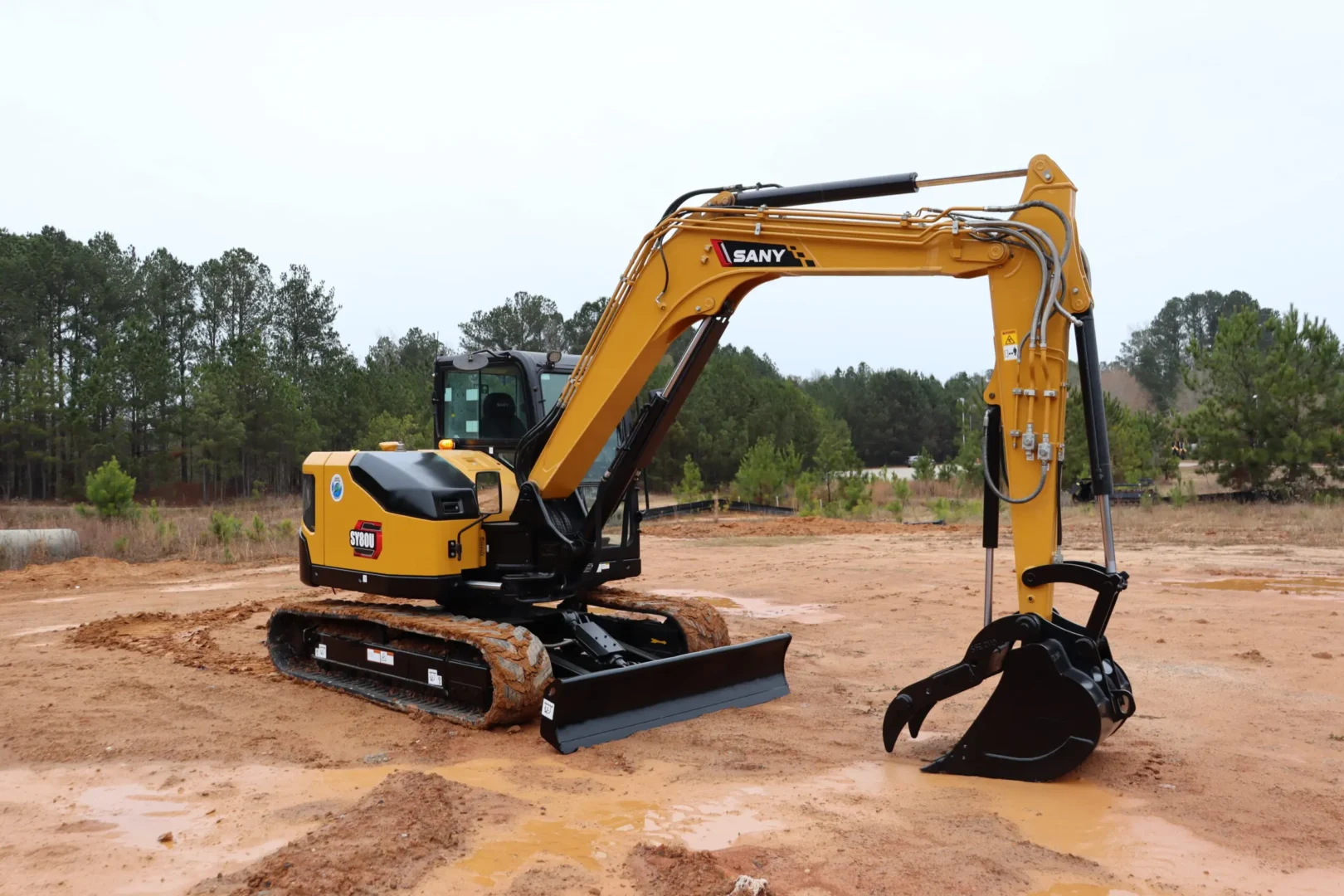

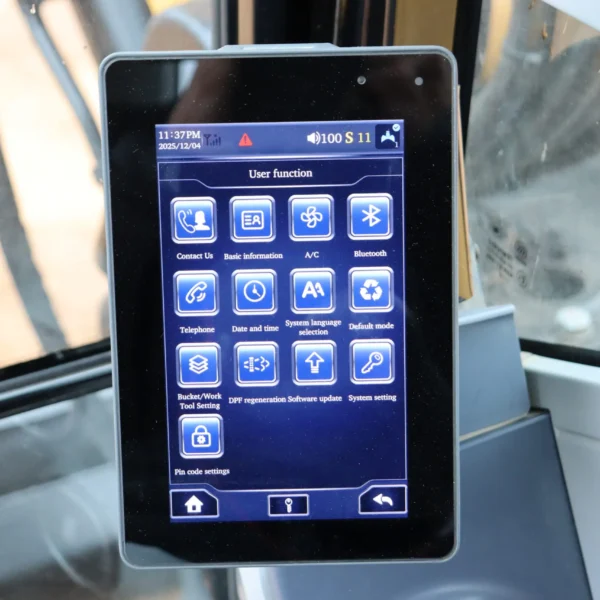

Hydraulic Pilot Controls With Pattern-Change Selector

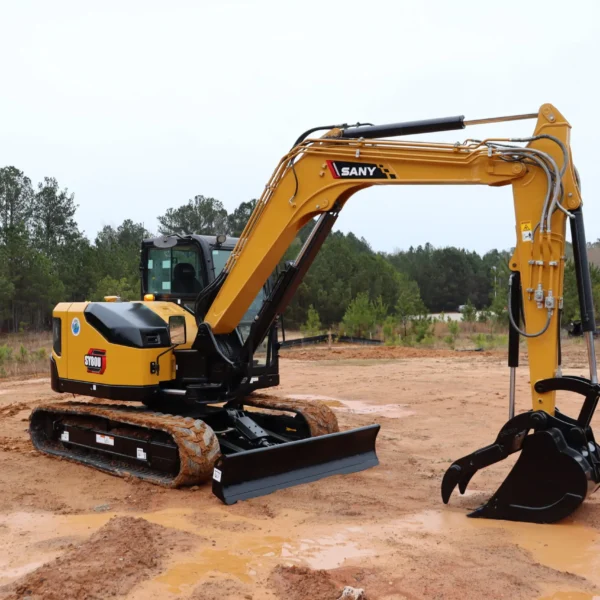

Thumb Ready Stick
Rubber Tracks For Ground Preservation On All Models Which Are Retractable Up To 34"
Heavy-Duty 4-Way Angle Backfill Blade, and Blade Float
Swing Boom Functionality
Primary Auxiliary Circuit With 1-Way, 2-Way, and Continous Flow

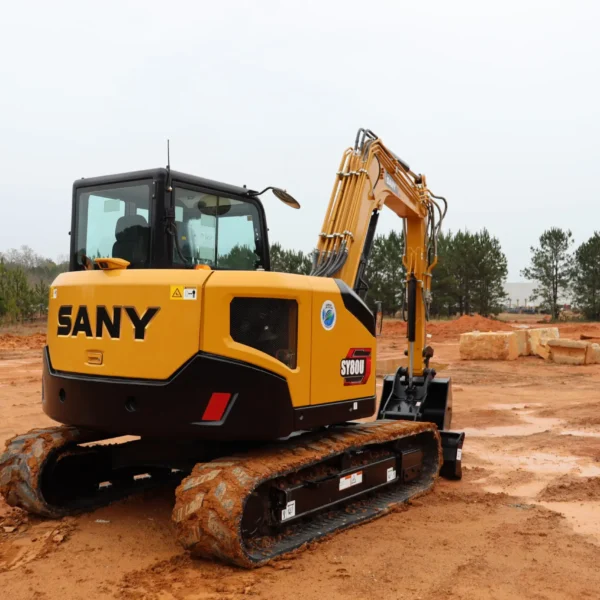

True Zero Tail Swing
Overall Dimensions
Boom Length: 11' 6"
Transport Length: 23'
Transport Width: 7' 3"
Transport Height: 8' 4"
Upper Structure Width: 7' 3"
Cab Height: 8' 4"
Blade Height: 16"
Track Width (standard shoe): 18"
Track Gauge: 5' 9"
Ground Clearance (minimum): 14"
Tail Swing Radius: 4' 10"
Track Length on Ground: 7' 7"
Track Length: 9' 7"
Technical Specifications
Operating Weight: 19,400 lb
Ground Pressure: 5.5 psi
Engine: Yanmar 4TNV98CT
Displacement: 202.5 in³
Net Power: 67.9 hp
Gross Power: 71.5 hp
Hydraulics: Load Sensing with Pilot Controls
Main Hydraulic Pump: Axial Piston - Variable Displacement
Operating Flow (maximum): 50.2 gal/min
Operating Pressure (maximum): 4061 psi
Auxiliary Flow*: 26.4 gpm
Auxiliary Pressure: 3626 psi
Travel Motor: Axial Piston with Park Brake
Travel Pressure (maximum): 4061 psi
Travel Speeds (maximum): 1.6/2.8 mph
Travel Effort (maximum): 15,733 lbf
Grade Capability: 30°
Swing Motor: Axial Piston with Gear Reduction
Swing Pressure (maximum): 4718 lbf
Swing Speed (maximum): 10.2 rpm
Undercarriage (standard): Belted Rubber Track
Track Shoe Width (standard): 18"
Track Rollers (per side): 5
Carrier Rollers (per side): 1
Working Range
Boom Length: 11' 6"
Stick (Arm) Length: 6' 9"
Maximum Digging Height: 24'
Maximum Dumping Height: 17' 10"
Maximum Digging Depth: 14' 11"
Maximum Vertical Wall Digging Depth: 8' 2"
Maximum Reach at Ground Level: 23' 4"
Minimum Swing Radius: 8'
