Hydraulic Pilot Controls With Pattern-Change  Selector


Thumb Ready Stick


Rubber Tracks For Ground Preservation On All Models Which Are Retractable Up To 34"

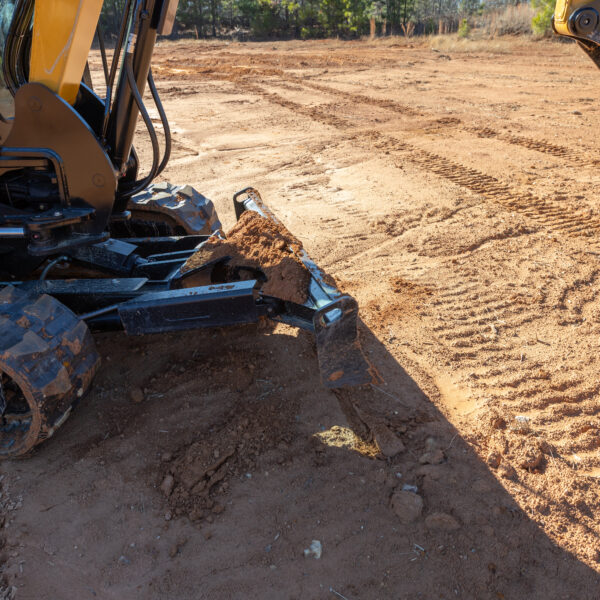

Heavy-Duty 4-Way Angle Backfill Blade, and Blade Float


Swing Boom Functionality

Primary Auxiliary Circuit With 1-Way, 2-Way, and Continous Flow


True Zero Tail Swing

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Overall Dimensions

    Boom Length: 8' 10"

    Transport Length: 17' 8"

    Transport Width: 6' 5"

    Transport Height: 8' 5"

    Upper Structure Width: 5' 11"

    Cab Height: 6' 5"

    Blade Height: 15"

    Track Width (standard shoe): 16"

    Track Gauge: 5' 1"

    Ground Clearance (minimum): 12"

    Tail Swing Radius: 3' 3"

    Track Length on Ground: 6' 9"

    Track Length: 8' 6"

  • Technical Specifications

    Boom Length: 8' 10"

    Stick (Arm) Length: 4' 11"

    Maximum Digging Height: 17' 11"

    Maximum Dumping Height: 12' 6"

    Maximum Digging Depth: 11' 3"

    Maximum Vertical Wall Digging Depth: 8' 1"

    Maximum Reach at Ground Level: 19' 3"

    Minimum Swing Radius: 8' 3"

  • Working Range

    Boom Length : 6' 11"

    Stick (Arm) Length: 4' 3"

    Maximum Digging Height: 14' 6"

    Maximum Dumping Height: 10' 2"

    Maximum Digging Depth: 9' 3"

    Maximum Vertical Wall Digging Depth:

    8' 6"

    Maximum Reach at Ground Level: 15' 11"

    Minimum Swing Radius: 6' 11"
