1 and 2-Way Primary Auxiliary Hydraulic and 2-Way Rotate Auxiliary Hydraulic Piping and Case Drain
Powerful Cummins Engine
Backup Camera for Increased Visibility of The Jobsite
Led Cab, Boom and Side High-Intensity Work Lights
High-Strength Frame Guards To Protect The Upper Frame

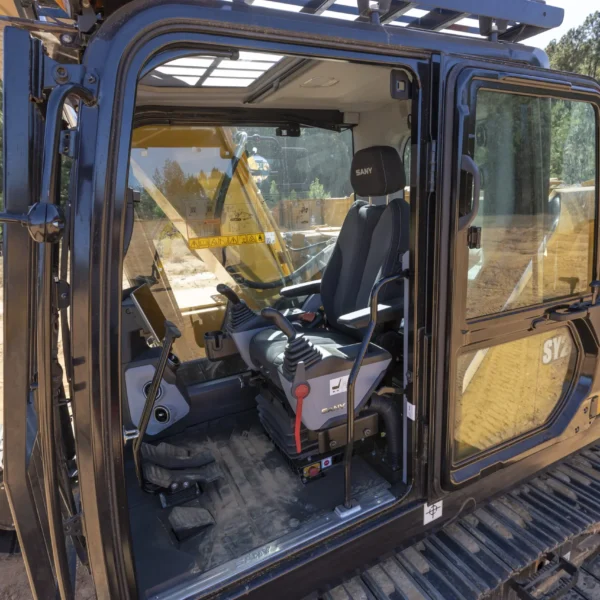

Hydraulic Pilot Controls With Pattern-Control Selector
Segmented Track Guards To Keep Track In Place and Reduce Wear
Long, Heavy-Duty Undercarriage For Stability and Durability
Overall Dimensions
Boom Length: 18' 8"
Transport Length: 31' 7"
Transport Width: 10' 5"
Transport Height: 10' 9"
Upper Structure Width: 9' 5"
Track Gauge: 7' 9"
Ground Clearance (minimum): 1' 6"
Tail Swing Radius: 9' 6"
Track Length on Ground: 11' 11"
Track Length: 14' 7"
Technical Specifications
Operating Weight: 53,793 lbs
Ground Pressure: 5.4 psi
Engine: Cummins QSB6.7 T4F
Displacement: 6.7 L
Gross Power: 173 hp
Main Hydraulic Pump: 2x Variable Piston Pump
Operating Flow (maximum): 2 x 60 gal/m
Operating Pressure (maximum): 4,975 psi
Auxiliary Flow*: 95 gal / 11 gal
Auxiliary Pressure: 4,931 psi / 2,030 psi
Travel Motor: Two Speed Axial Piston Motor with Planetary
Travel Pressure (maximum): 3,553 psi
Travel Speeds (maximum): 5.4/3.4 mph
Travel Effort (maximum): 49,908 lbf
Grade Capability: 35°
Swing Motor: Axial Piston Motor With Planetary Reducer and Automatic Holding Brake
Swing Pressure (maximum): 3,988 psi
Swing Speed (maximum): 11.1 rpm
Undercarriage (standard): Steel Track
Track Shoe Width (standard): 2' 7"
Track Rollers (per side): 9
Carrier Rollers (per side): 2
Working Range
Boom Length: 18' 8 "
Stick (Arm) Length: 9' 7"
Maximum Digging Height: 31' 11"
Maximum Dumping Height: 22' 1"
Maximum Digging Depth: 21' 1"
Maximum Vertical Wall Digging Depth: 19' 9"
Maximum Reach at Ground Level: 31' 11"
Minimum Swing Radius: 11' 10"
