Powerful Duetz Engine
Auxiliary Hydraulic Connections On The Boom
Single, Multi-Function Joystick Controls
Full 4-Wheel Fender Package
Backup Camera and Reverse Sensing System
Backup Camera and Reverse Sensing System
Cushioned Solid Tires
Led Boom Work Lights and Lift Hook
Overall Dimensions

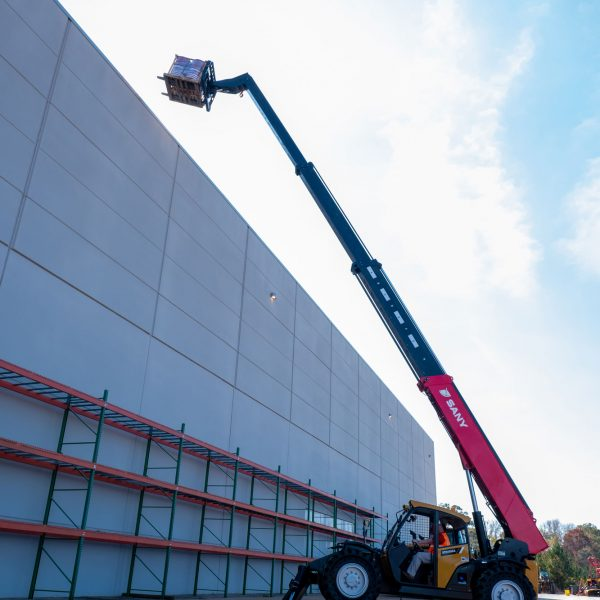

Maximum Lift Height: 56' 2"
Maximum Forward Reach: 42' 11"
Height, Stowed: 8' 5"
Length, Stowed (Without Forks): 20' 7"
Width: 8' 6"
Wheelbase: 11' 5"
Ground Clearance (Center): 1' 6"
Ground Clearance (Axle): 1' 6"
Weight: 33,290 lb
Performance
Maximum Lift Capacity: 10,000 lbs
Lift Capacity at Maximum Height: 5,000 lbs
Lift Capacity at Maximum Reach: 3,000 lbs
Boom (Raise/Lower): 11 sec / 14 sec
Boom (Extend/Retract): 15 sec / 16 sec
Frame Leveling: +/- 10 degrees
Maximum Drive Speed: 17 mph
Outside Turning Radius (4WS): 14' 11"
Auxiliary Hydraulic Flow: 17 GPM
Auxiliary Hydraulic Pressure: 2,466 psi
Standard Tire Size: 14.00-24
Capacities
Power: 121 hp
Torque: 360 lbf-ft
Electrical System: 24 volt
Hydraulic Tank Capacity: 33 gal
Hydraulic System Capacity: 42 gal
Fuel Tank Capacity: 36 gal
Components
Engine: Deutz TCD 3.6
Transmission: Dana VDT12000
Axles F/R: Dana 212 / Dana 212
Hydraulic Pump: Kawasaki Load Sense Piston Pump
Hydraulic Manifold: Parker
