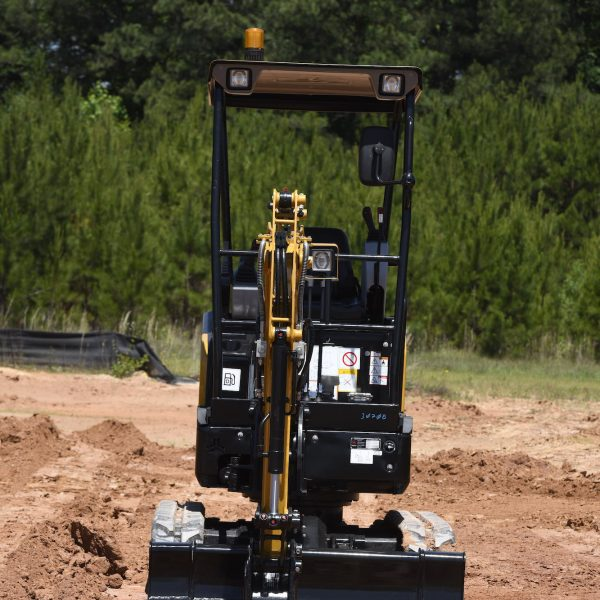

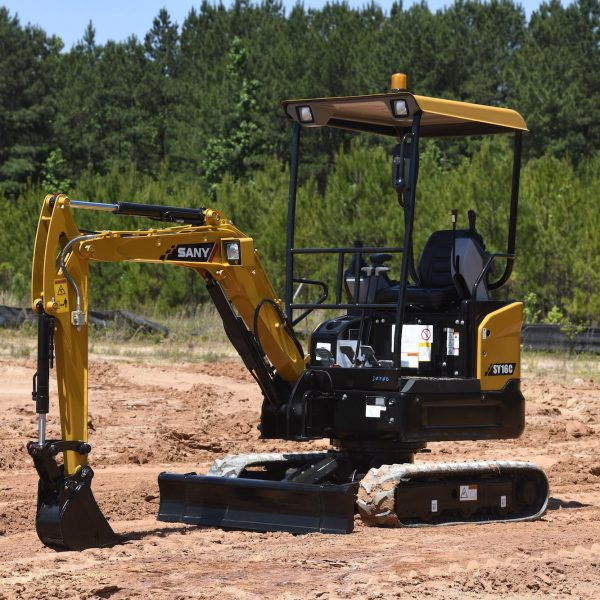

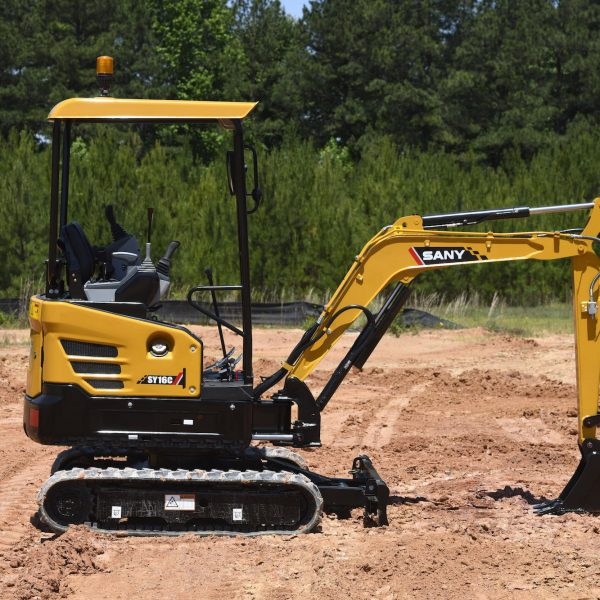

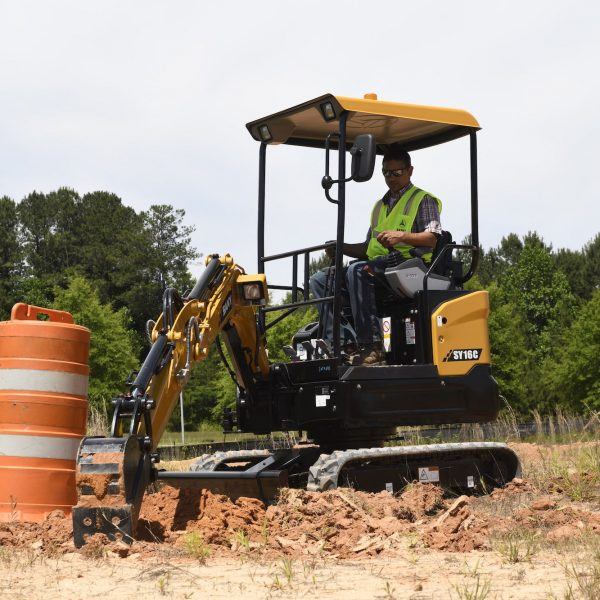

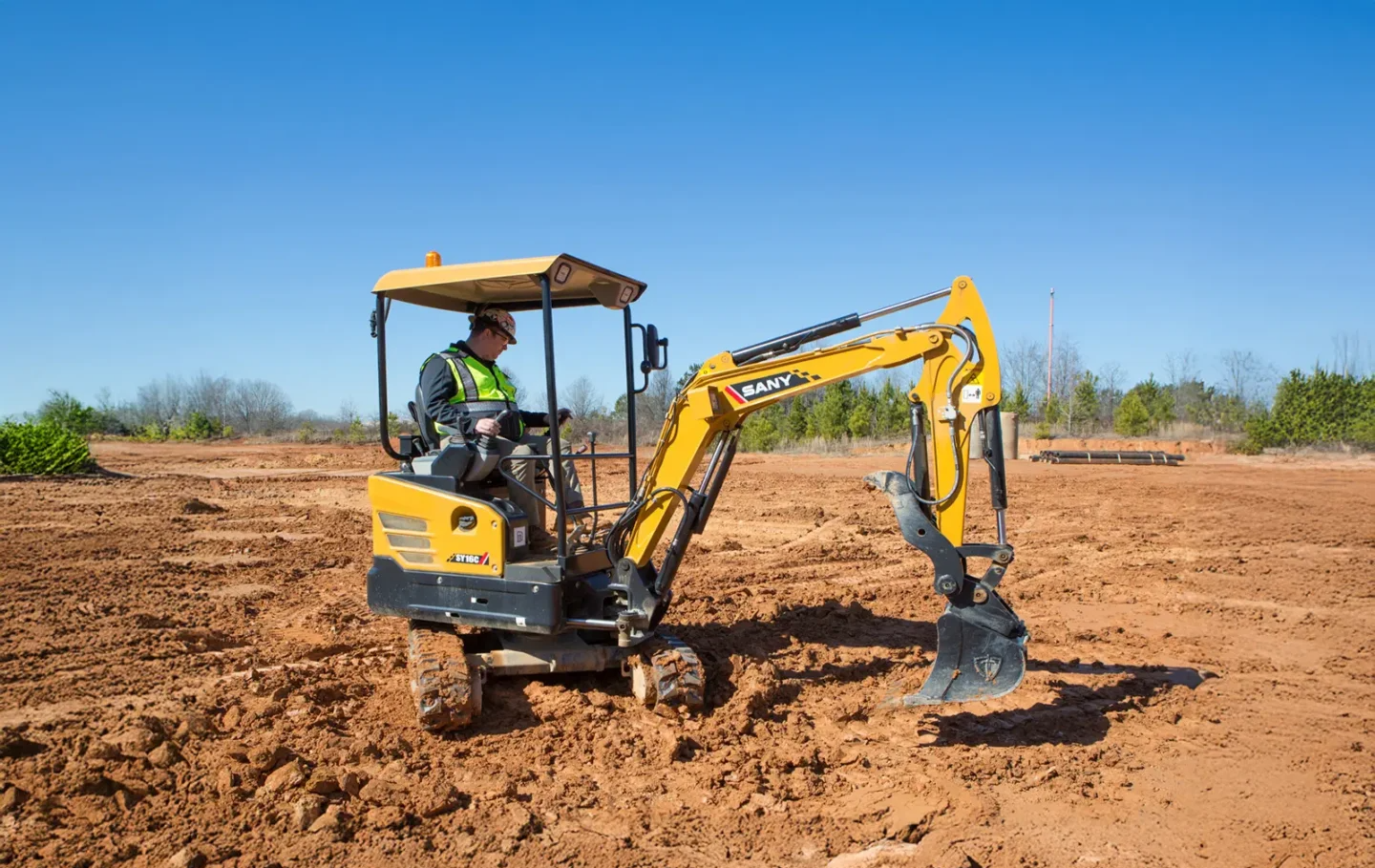

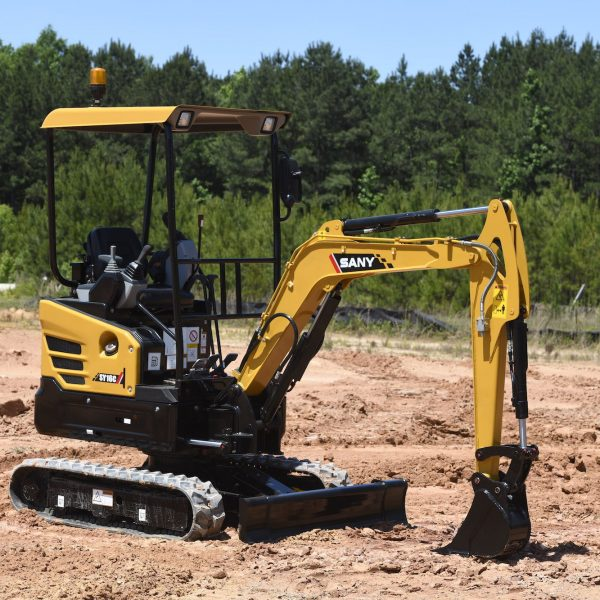

Hydraulic Pilot Controls With Pattern-Change Selector
Thumb Ready Stick
Rubber Tracks For Ground Preservation On All Models Which Are Retractable Up To 34"
Boom And Standard, Straight Blade Cylinder Guards On All Models
Swing Boom Functionality
Primary Auxiliary Circuit With 1- and 2-Way Flow
True Zero Tail Swing
Overall Dimensions
Boom Length: 5' 11"
Transport Length: 12'
Transport Width: 3' 3" / 4' 5"
Transport Height: 8' 4"
Upper Structure Width: 3' 3"
Blade Height: 11"
Track Width (standard shoe): 9"
Track Gauge: 2' 6" / 3' 8"
Ground Clearance (minimum): 7"
Tail Swing Radius: 3' 0"
Track Length on Ground: 4' 0"
Track Length: 5' 2"
Technical Specifications
Operating Weight: 4,023 lbs
Ground Pressure: 4.2 psi
Engine: Yanmar 3TNV80F
Displacement: 77.5 in3
Net Power: 18.2 hp
Gross Power: 19.6 hp
Hydraulics: Load Sensing with Pilot Control
Main Hydraulic Pump: Axial Piston - Variable
Operating Flow (maximum): 19 gal/min
Operating Pressure (maximum): 3,553 psi
Auxiliary Flow*: 11 gal/min
Auxiliary Pressure: 3,626 psi
Travel Motor: Axial Piston
Travel Pressure (maximum) : 3,553 psi
Travel Speeds (maximum): 1.7 / 2.5 mph
Travel Effort (maximum): 3,507 lbf
Grade Capability: 30º
Swing Motor: Axial Piston
Swing Pressure (maximum): 2350 psi
Swing Speed (maximum): 10 rpm
Undercarriage (standard): Belted Rubber Track
Track Shoe Width (standard): 9"
Track Rollers (per side): 3
Working Range
Boom Length : 5' 11"
Stick (Arm) Length: 3' 8"
Maximum Digging Height: 12'
Maximum Dumping Height: 8' 8"
Maximum Digging Depth: 7' 9"
Maximum Vertical Wall Digging Depth:
7' 3"
Maximum Reach at Ground Level: 13' 1"
Minimum Swing Radius: 5' 5"
