Ride Control
Third-Function Auxiliary Plumbing

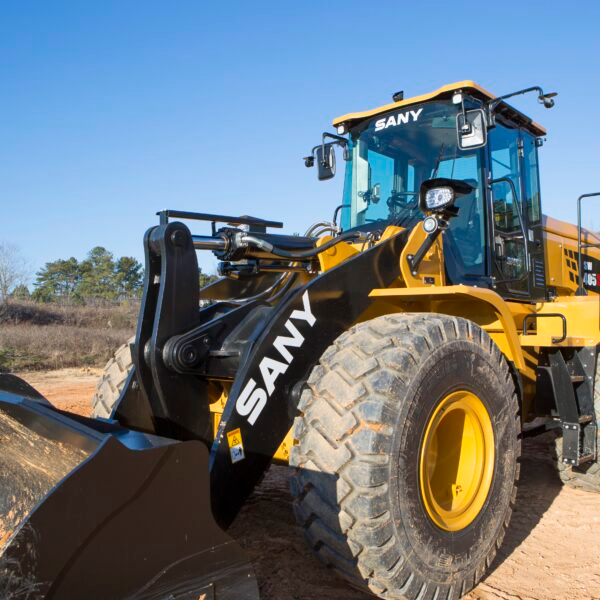

Z-Bar Linkage
Powershift Transmission
Duetz Engine
360 Degree Camera & Rear View Camera
Reversible Fan
Work Light Package & Beacon
Engine
Engine Model: Deutz TCD6.1
Max Gross Power : 262 hp
Net Engine Power: 228 hp
Max Gross Torque: 965 lbs ft
Displacement: 476 in3
Operating
Bucket Capacity: 4.0 yd3
Breakout Force: 40,466 lbf
Tipping Load Straight: 31,967 lbs
Tipping Load @ Full Term: 28,881 lbs
Clearance (full lift 45º dump): 10' 2"
Reach (full lift 45º dump): 3' 11"
Weight
Operating Weight: 40,786 lbs
Hydraulic System
Max Flow: 81 GP
Max Pressure: 4,061 PSI
Hydraulic Cycle Times
Raise: 5.4 sec
Dump: 1.9 sec
Float Down: 3.3 sec
Total Cycle Time: 10.6 sec
Service Capabilities
Fuel Tank: 79.3 gal
Cooling Systems: 11.4 gal
Engine Crankcase: 6.1 gal
Transmission: 9.2 gal
Front Axle: 7.4 gal
Rear Axle: 7.4 gal
Hydraulic Tank: 76.6 gal
DEF Tank: 5.3 gal
Transmission
Shift Modes: Automatic, Manual, Kick Down
Forward Gear 1-4: 4–25 mph
Reverse Gear 1-4: 4–16 mph
Power Train
Front Axle: Fixed
Traction Aid: Manual Differential Lock
Rear Axle: Oscillating
Traction Aid: Open Differential
Service Brakes: Wet Disc
Parking Brake: Disk Brake
Overall Dimensions
Ground Clearance: 1' 5"
Height to Top of Cab: 11' 9"
Center Line of Rear Axle to Edge of Counterweight: 7' 8"
Wheelbase: 10' 6"
Center Line of Front Axle to Center Pivot: 5' 3"
Shipping Length without Attachments: 23' 1"
Shipping Length with Bucket: 26' 10"
Max. Dump Height: 17' 9"
Hinge Pin Height at Max. Lift: 13' 7"
Dump Clearance at Max. Lift: 10' 2"
Dig Depth, Level Bucket: 1.2"
Reach at Max. Lift and 45º Discharge: 3' 11"
Roll Back at Max. Lift: 58º
Dump Angle at Max. Lift and Dump: 45º
Roll Back at Carry Height: 50º
Roll Back at Ground: 45º
Tail Angle to the Rear Wheel: 27º
Clearance Circle to Outside of Tires: 18.6"
Clearance Circle to Counterweight: 19' 5"
Max. Circle: 21' 3"
Width: 7' 3"
Articulation Angle: +/- 40º
