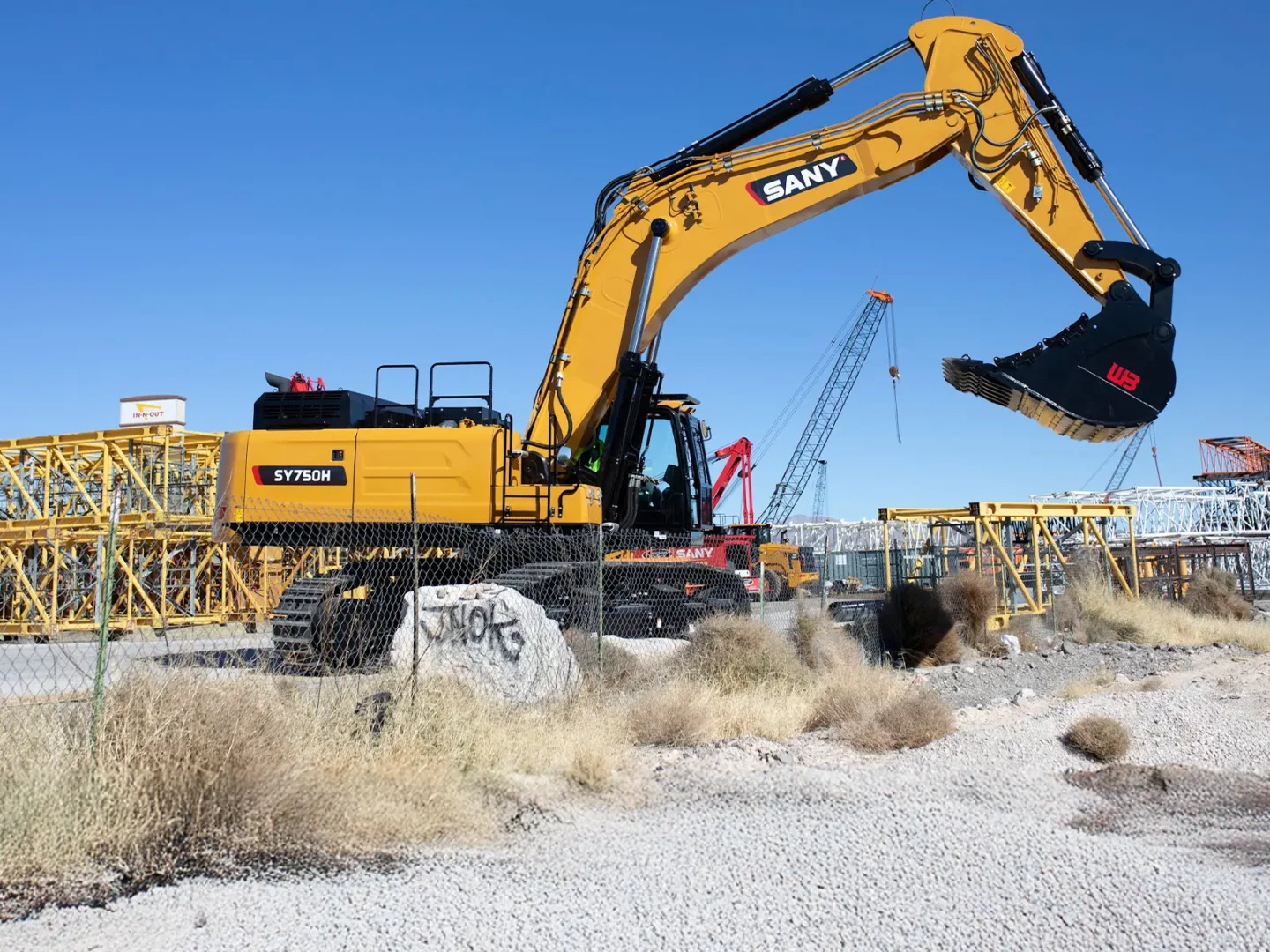

Quick Coupler Plumbing To End of Stick
1 and 2-Way Primary & 2-Way Secondary Auxiliary Circuits
Reversible Hydraulic System Cooling Fan
Rear View Camera & Blind Side Camera
Large Touchscreen Display
Removable Counterweight
Heated Air Ride Suspension Seated w/ Adjustable Armrests
Bright LED Work Light Package

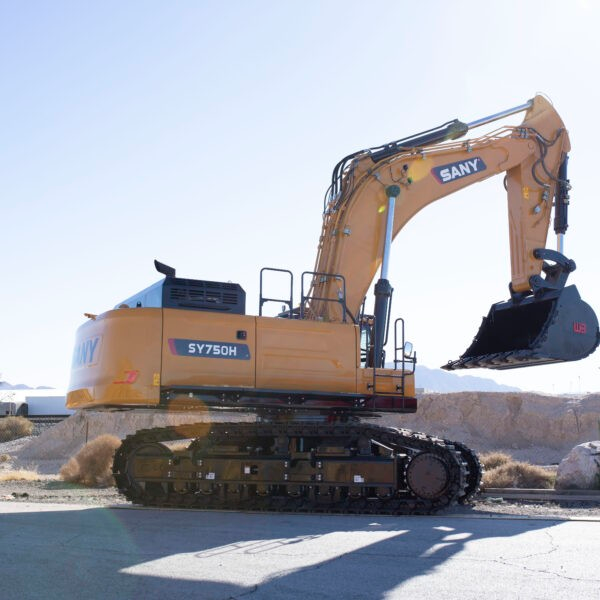

Overall Dimensions
Boom Length: 23'
Transport Length: 42' 3"
Transport Width: 12'
Transport Height: 16' 4"
Upper Structure Width: 14' 8"
Cab Height: 12' 5"
Track Width (standard shoe): 26"
Track Gauge: 11' 1"
Ground Clearance (minimum): 2' 11"
Tail Swing Radius: 13' 8"
Track Length on Ground: 15' 8"
Track Length: 19' 8"
Technical Specifications
Operating Weight: 173,063 lbs
Ground Pressure: 14.6 psi
Engine: Cummins X15 Stage V / Tier4F
Displacement: 909.3 in
Gross Power: 524 HP
Hydraulics: Positive Flow w/Pilot Control
Main Hydraulic Pump: Axial Piston – Variable Displacement
Operating Flow (maximum): 266.3 gal/min
Operating Pressure (maximum): 4,975 psi
Travel Motor: Axial Piston with Park Brake
Travel Pressure (maximum): 4,975 psi
Travel Speeds (maximum): 1.8 / 2.8 mph
Travel Effort (maximum): 122,926 lbf
Grade Capability: 35°
Swing Motor: Axial Piston with Swing Brake
Swing Pressure (maximum): 4,134 psi
Swing Speed (maximum): 7.2 RPM
Undercarriage (standard): Steel Track
Track Shoe Width (standard): 26"
Track Rollers (per side): 8
Carrier Rollers (per side): 3
Working Range
Boom Length: 23’
Stick (Arm) Length: 9' 10"
Maximum Digging Height: 36' 2"
Maximum Dumping Height: 23' 6"
Maximum Digging Depth: 24' 10"
Maximum Vertical Wall Digging Depth: 16'
Maximum Reach at Ground Level: 39' 88"
Minimum Swing Radius: 17' 8"
