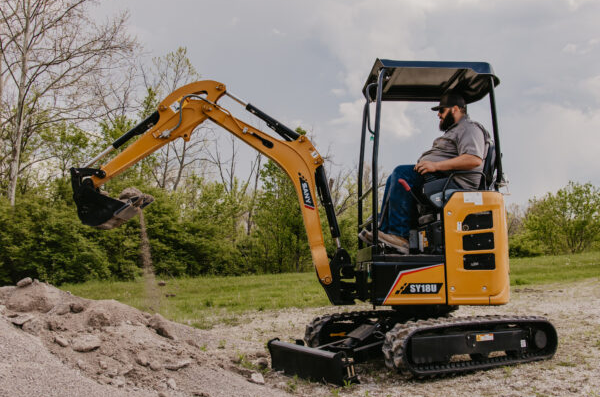

Hydraulic Pilot Controls With Pattern-Change  Selector


Thumb Ready Stick


Rubber Tracks For Ground Preservation On All Models Which Are Retractable Up To 34"


Boom And Standard, Straight Blade Cylinder Guards On All Models


Swing Boom Functionality


Primary Auxiliary Circuit With 1- and 2-Way Flow


True Zero Tail Swing

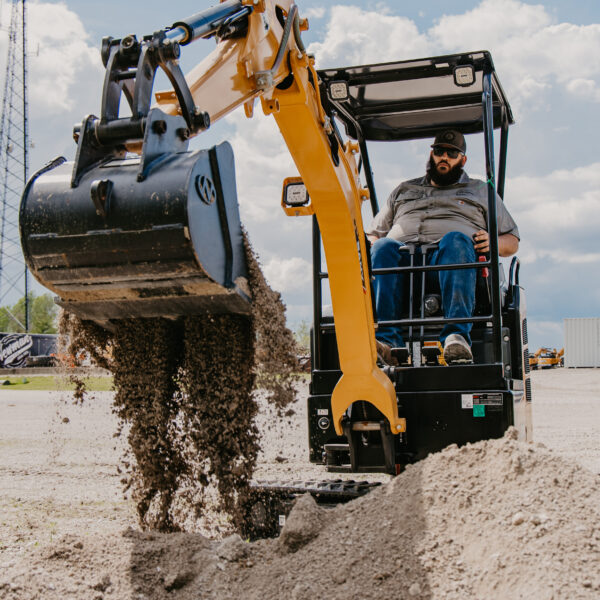

  • Slide title

    Write your caption here
    Button

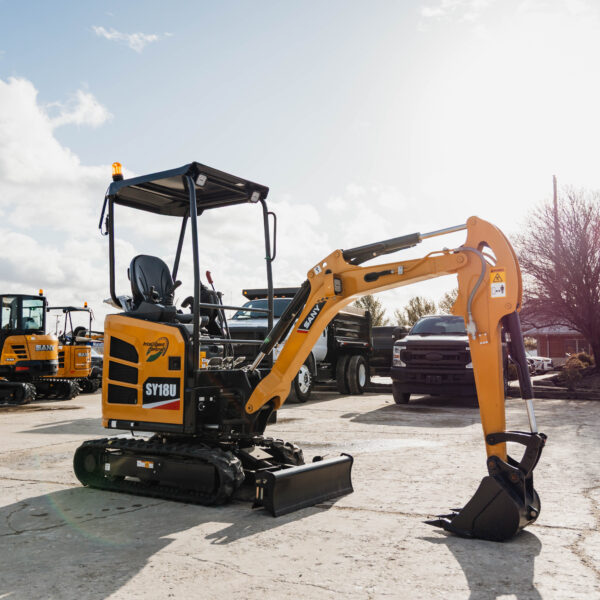

  • Slide title

    Write your caption here
    Button

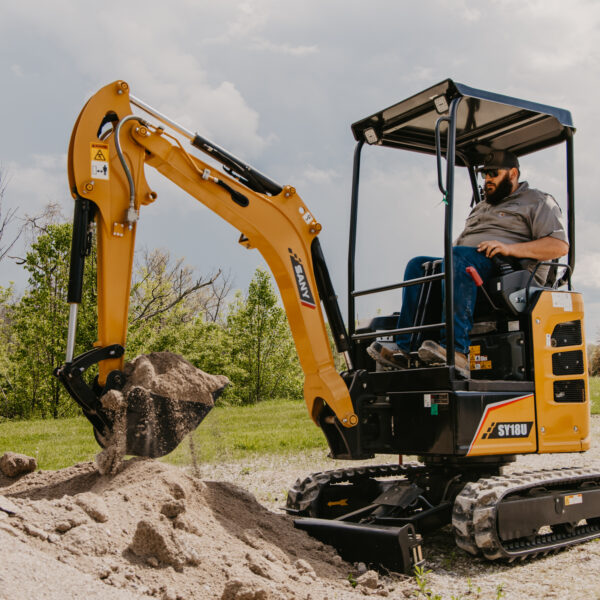

  • Slide title

    Write your caption here
    Button

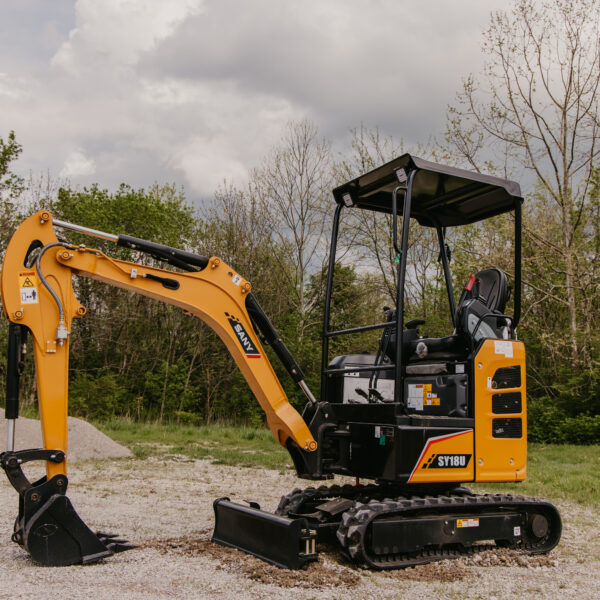

  • Slide title

    Write your caption here
    Button

  • Overall Dimensions

    Boom Length: 5' 10"

    Transport Length: 11' 6"

    Transport Width: 3' 3" / 4' 5"

    Transport Height: 7' 9"

    Upper Structure Width: 3' 3"

    Blade Height: 11"

    Track Width (standard shoe): 9"

    Track Gauge: 2' 6" / 3' 8"

    Ground Clearance (minimum): 7"

    Tail Swing Radius: 3' 0"

    Track Length on Ground: 4' 0"

    Track Length: 5' 2"

  • Technical Specifications

    Operating Weight: 4,244 lbs

    Ground Pressure: 4.4 psi

    Engine: Yanmar 3TNV80F

    Displacement: 77.5 in^2

    Net Power

    13.6 kW

    18.2 hp

    Gross Power

    14.6 kW

    19.6 hp

    Hydraulics Load Sensing with Pilot Control

    Main Hydraulic Pump Axial Piston - Variable Displacement

    Operating Flow (maximum)

    66.0 L/min

    17 gal/min

    Operating Pressure (maximum)

    24.5 L/min

    3,553 psi

    Auxiliary Flow*

    40 L/min

    11 gal/min

    Auxiliary Pressure

    16 MPa

    2,321 psi

    Travel Motor Axial Piston

    Travel Pressure (maximum)

    24.5 MPa

    3,553 psi

    Travel Speeds (maximum)

    3.0 / 4.0 km/h

    1.9 / 2.7 mph

    Travel Effort (maximum)

    15.6 kN

    3,507 lbf

    Grade Capability 30 Degrees

    Swing Motor Axial Piston

    Swing Pressure (maximum)

    16.2 MPa

    2,350 psi

    Swing Speed (maximum) 10 RPM

    Undercarriage (standard) Belted Rubber Track

    Track Shoe Width (standard)

    230 mm

    9"

    Track Rollers (per side) 3

  • Working Range

    Boom Length : 5' 10"

    Stick (Arm) Length: 3' 10"

    Maximum Digging Height: 11' 8"

    Maximum Dumping Height: 8' 1"

    Maximum Digging Depth: 8' 6"

    Maximum Vertical Wall Digging Depth:

    7' 3"

    Maximum Reach at Ground Level: 13' 7"

    Minimum Swing Radius: 5' 5"

  • Digging Performance

    Boom Length: 5' 10"

    Bucket Breakout Force (ISO): 3,732 lbf

    Stick Digging Force (ISO): 1,866 lbf

    *Based on theoretical calculation at max flow with no load. Subject to alterations.
