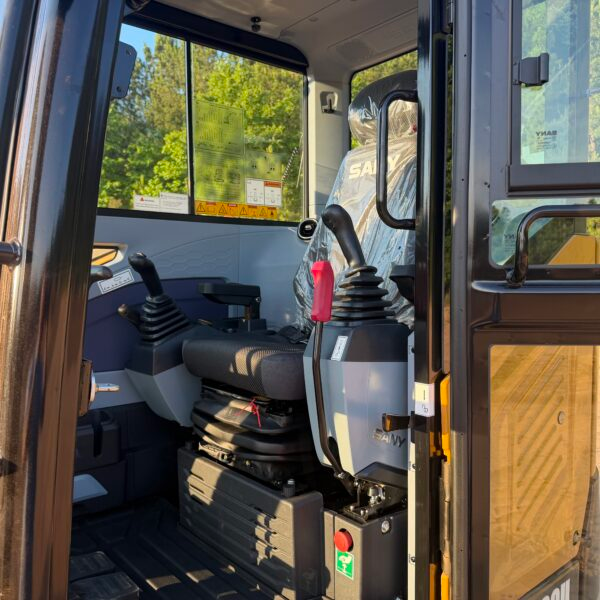

Hydraulic Pilot Controls With Pattern-Change Selector

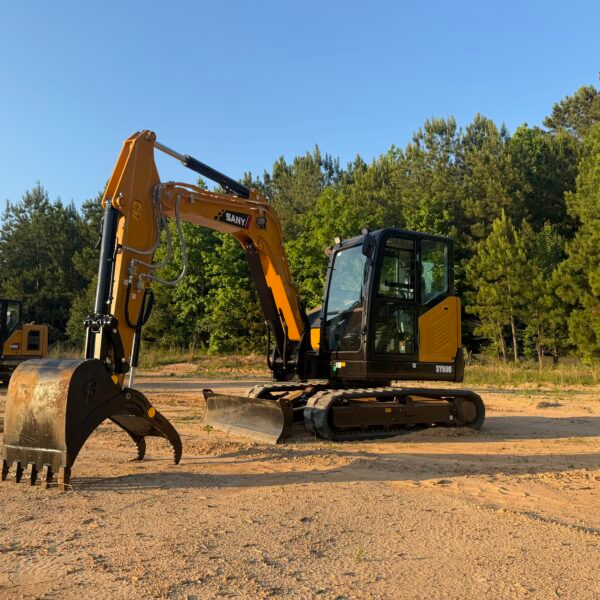

Thumb Ready Stick
Rubber Tracks For Ground Preservation On All Models Which Are Retractable Up To 34"
Heavy-Duty 4-Way Angle Backfill Blade, and Blade Float
Swing Boom Functionality
Primary Auxiliary Circuit With 1-Way, 2-Way, and Continous Flow

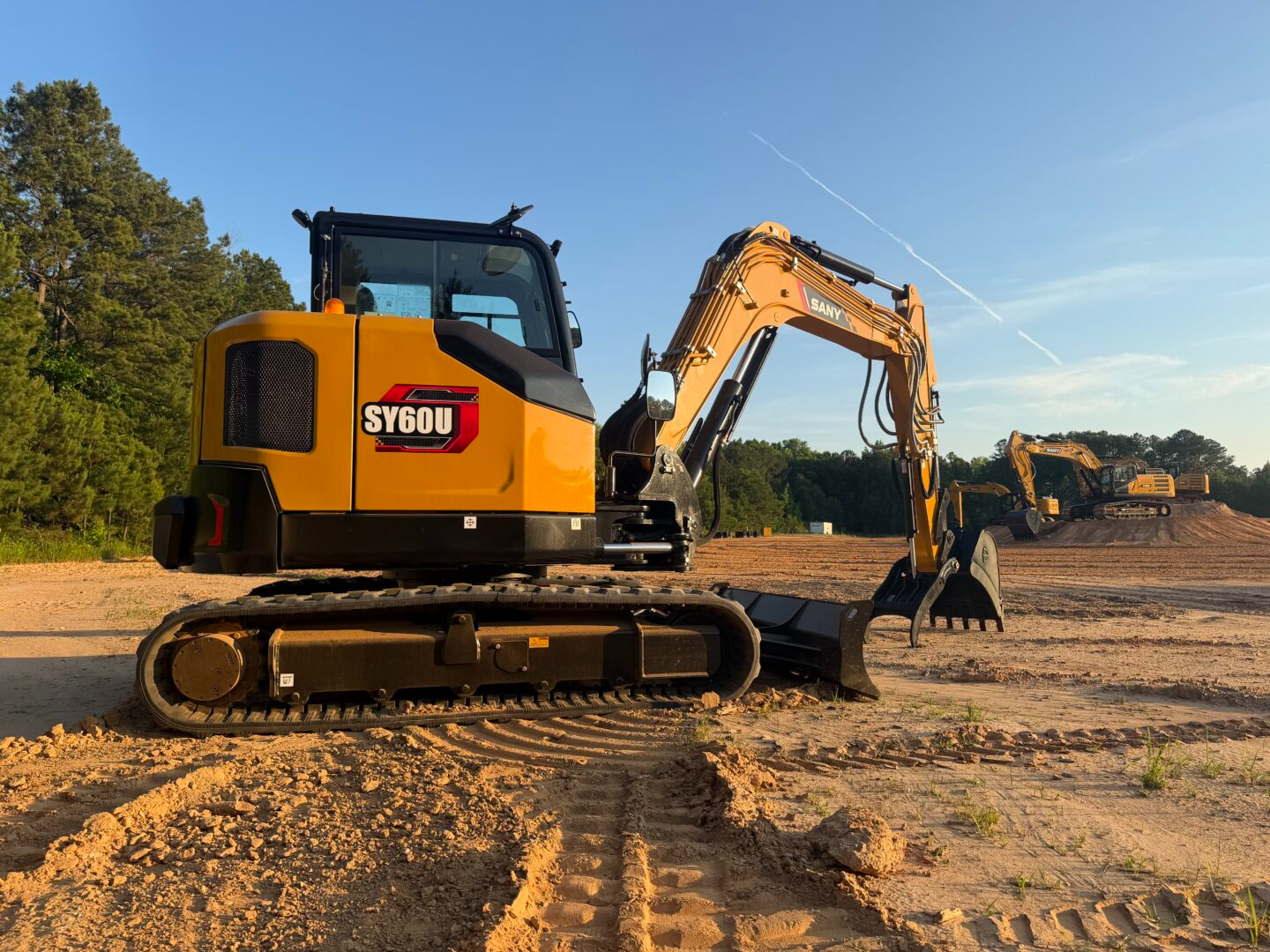

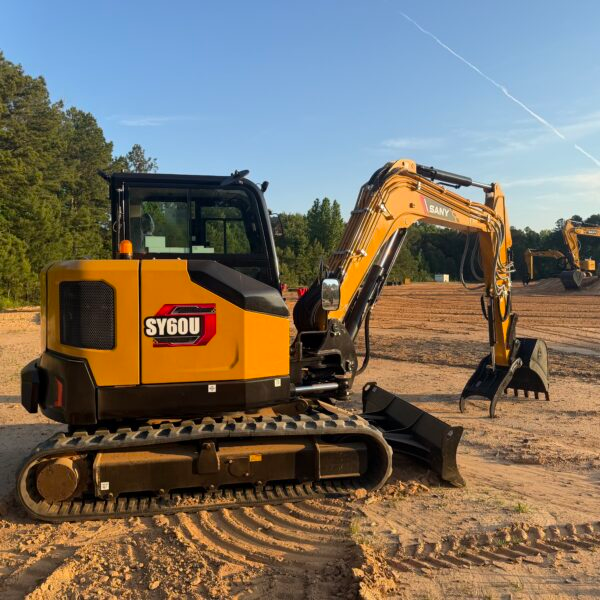

True Zero Tail Swing
Overall Dimensions
Boom Length: 9' 10"
Transport Length: 19' 8"
Transport Width: 6' 7"
Transport Height: 8' 6"
Upper Structure Width: 6' 2"
Blade Height: 15"
Track Width (standard shoe): 16"
Track Gauge: 5' 3"
Ground Clearance (minimum): 13"
Tail Swing Radius: 5' 1"
Track Length on Ground: 6' 9"
Track Length: 8' 6"
Technical Specifications
Operating Weight: 13,228 lb
Ground Pressure: 5.0 psi
Engine: Yanmar 4TNV98C
Displacement: 201.4 in3
Net Power: 55.1 HP
Gross Power: 56.9 HP
Hydraulics: Load Sensing with Pilot Control
Main Hydraulic Pump: Axial Piston - Variable Displacement
Operating Flow (maximum): 39.1 gal/min
Operating Pressure (maximum): 3,916 psi
Auxiliary Flow*: 23.8 gal/min
Auxiliary Pressure: 3,626 psi
Travel Motor: Axial Piston with Park Brake
Travel Pressure (maximum): 3,916 psi
Travel Speeds (maximum): 1.4 / 2.5 mph
Travel Effort (maximum): 13,713 lbf
Grade Capability: 30º
Swing Motor: Axial Piston with Swing Brake
Swing Pressure (maximum): 2,770 psi
Swing Speed (maximum): 9.6 rpm
Undercarriage (standard): Belted Rubber Track
Track Shoe Width (standard): 16"
Track Rollers (per side): 5
Carrier Rollers (per side): 1
Working Range
Boom Length: 9' 10"
Stick (Arm) Length: 5' 7"
Maximum Digging Height: 18' 10"
Maximum Dumping Height: 13' 2"
Maximum Digging Depth: 13' 1"
Maximum Vertical Wall Digging Depth: 10' 6"
Maximum Reach at Ground Level: 20' 7"
Minimum Swing Radius: 8' 8"
Digging Performance
Boom Length:
9'10"
Bucket Breakout Force (ISO): 10,116 lbf
Stick Digging Force (ISO): 7,419 lbf
*Based on theoretical calculation at max flow with no load. Subject to alterations.
