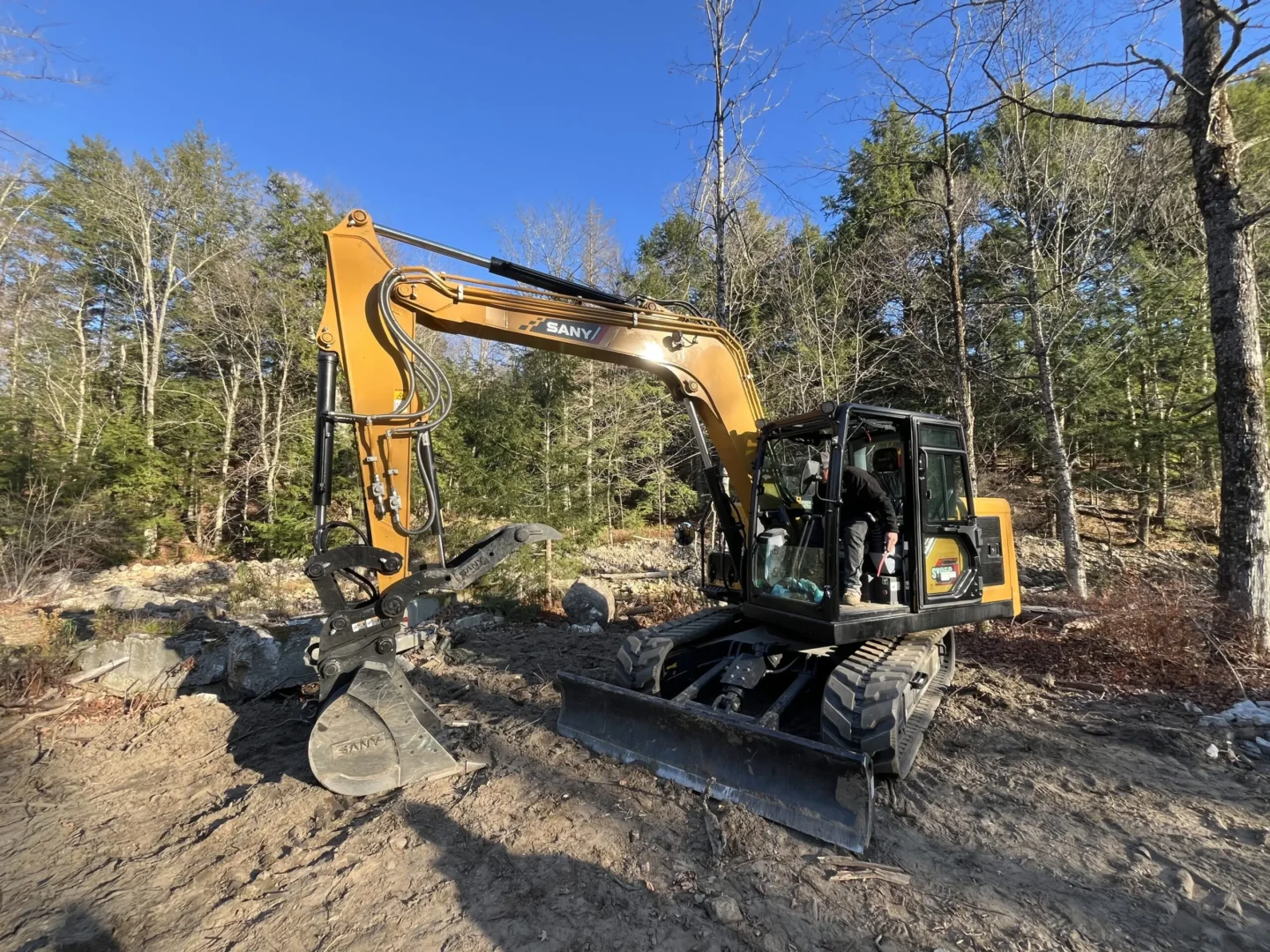

Quick-Coupler Plumbing To End of Stick
Fixed Boom For Increased Lifting Performance
1-Way and 2-Way Primary Auxiliaries
Hydraulic Pilot Controls with Pattern-Change Selector
Rear View Camera
1-Way and 2-Way and a Secondary Auxilliary Circuit and Case Drain

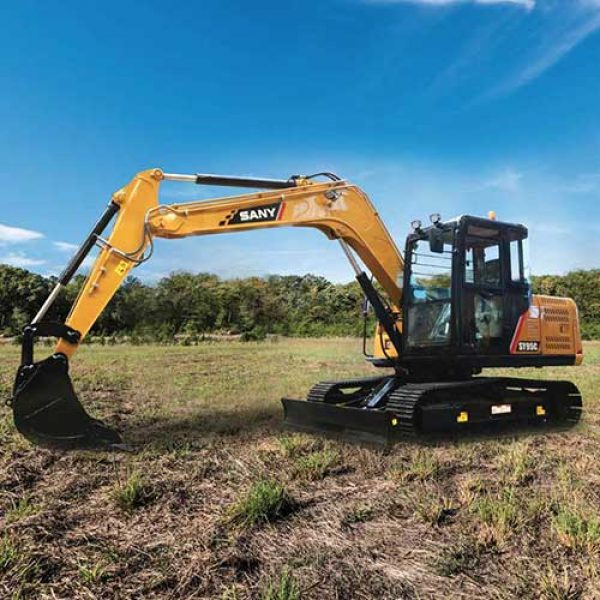

Overall Dimensions
Boom Length: 13' 1"
Transport Length: 21' 6"
Transport Width: 7' 5"
Transport Height: 10' 6"
Upper Structure Width: 7' 1"
Blade Height: 17"
Track Width (standard shoe): 18"
Track Gauge: 5' 11"
Ground Clearance (minimum): 14"
Tail Swing Radius: 6' 2"
Track Length on Ground: 7' 8"
Track Length: 9' 9"

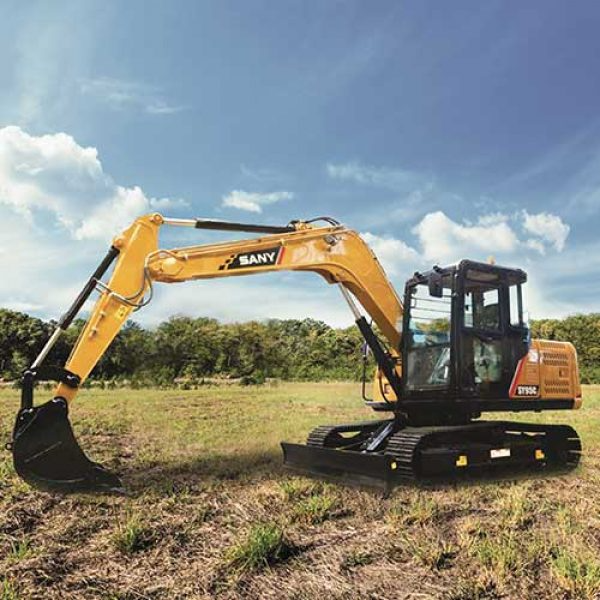

Technical Specifications
Operating Weight: 20,238 lb
Ground Pressure: 5.6 psi
Engine: Yanmar 4TN98CT-VSY
Displacement: 201.4 in3
Net Power: 66.4 hp
Gross Power: 72 HP
Hydraulics: Load Sensing with Pilot Control
Main Hydraulic Pump: Axial Piston - Variable Displacement
Operating Flow (maximum): 52.7 gal/min
Operating Pressure (maximum): 3,814 psi
Travel Motor: Axial Piston with Park Brake
Travel Pressure (maximum): 3,814 psi
Travel Speeds (maximum): 1.8 / 3.1 mph
Travel Effort (maximum: 18,659 lbf
Grade Capability: 35º
Swing Motor: Axial Piston with Swing Brake
Swing Pressure (maximum): 3,118 psi
Swing Speed (maximum): 11 rpm
Undercarriage (standard): Steel Track
Track Shoe Width (standard): 18"
Track Rollers (per side): 5
Carrier Rollers (per side): 1
Working Range
Boom Length: 13' 1"
Stick (Arm) Length: 6' 7"
Maximum Digging Height: 23' 10"
Maximum Dumping Height: 17' 1"
Maximum Digging Depth: 14' 2"
Maximum Vertical Wall Digging Depth: 10' 1"
Maximum Reach at Ground Level: 21' 10"
Minimum Swing Radius: 6' 6"
