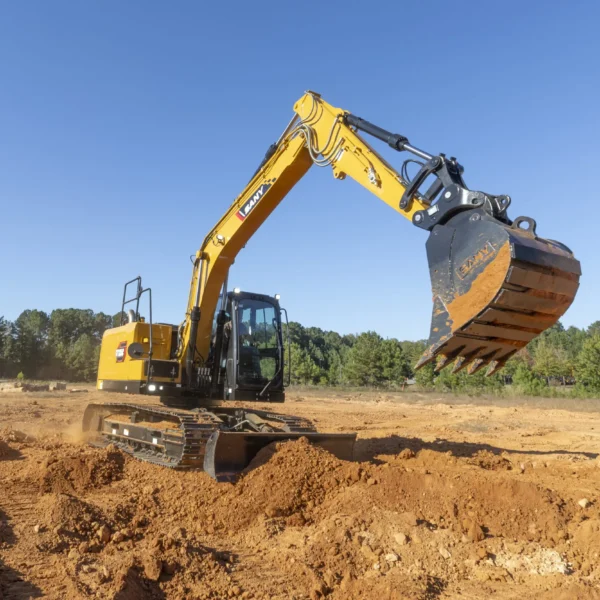

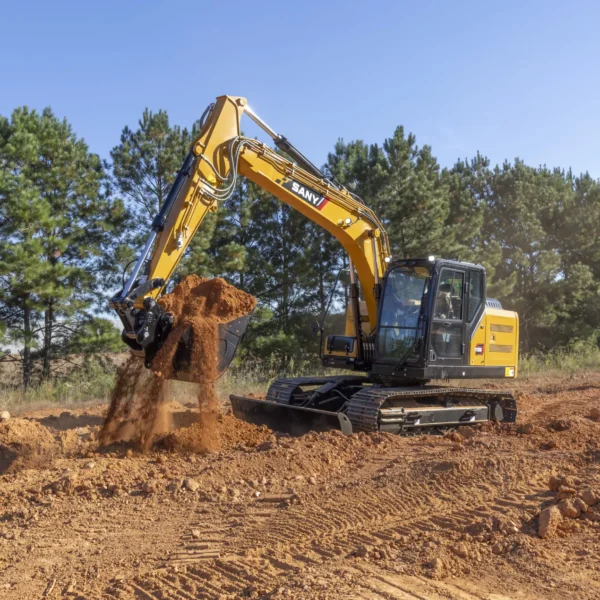

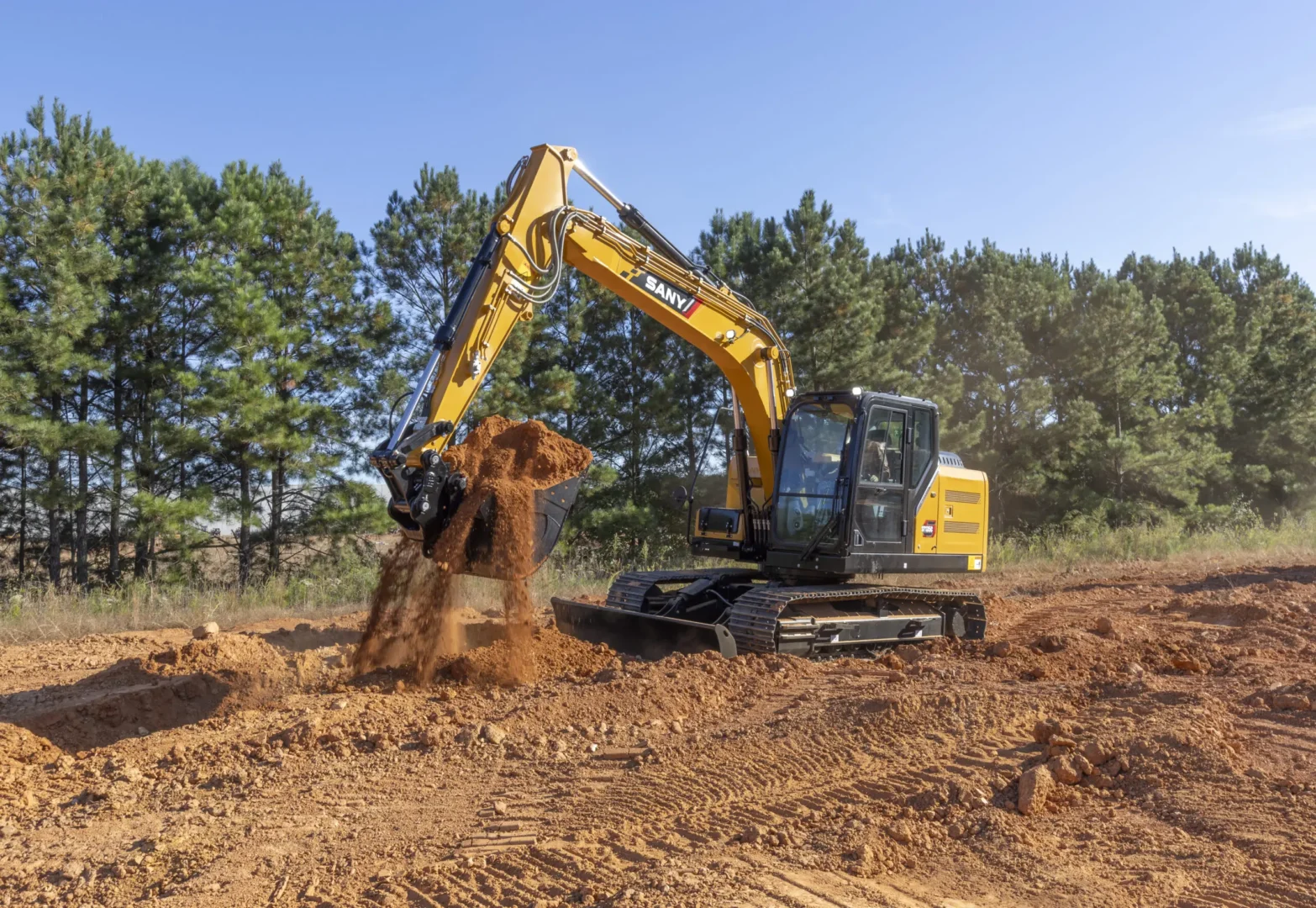

Quick-Coupler Plumbing To End of Stick
Fixed Boom For Increased Lifting Performance
1-Way and 2-Way Primary Auxiliaries
Hydraulic Pilot Controls with Pattern-Change Selector
Rear View Camera
New Touchscreen Display
1-Way and 2-Way and a Secondary Auxilliary Circuit and Case Drain
Overall Dimensions
Boom Length: 15' 1"
Transport Length: 25' 3"
Transport Width: 8' 6"
Transport Height: 9' 3"
Upper Structure Width: 8' 2"
Blade Height: 18"
Track Width (standard shoe): 24"
Track Gauge: 6' 6"
Ground Clearance (minimum): 14"
Tail Swing Radius: 7' 3"
Track Length on Ground: 9' 7"
Track Length: 12' 0"
Technical Specifications
Operating Weight: 32,783 lb
Ground Pressure: 5.7 psi
Engine: ISUZU 4JJ-FT4
Displacement: 183 in3
Net Power: 103.9 hp
Gross Power: 103.9 hp
Hydraulics: Positive Flow Control with Pilot Control
Main Hydraulic Pump: Axial Piston - Variable Displacement
Operating Flow (maximum): 63.9 gal/min
Operating Pressure (maximum): 4,975 psi
Travel Motor: Axial Piston with Park Brake
Travel Pressure (maximum): 4,975 psi
Travel Speeds (maximum): 2.2 / 3.4 mph
Travel Effort (maximum: 24,729 lbf
Grade Capability: 35º
Swing Motor: Axial Piston with Swing Brake
Swing Pressure (maximum): 3,626 psi
Swing Speed (maximum): 12 rpm
Undercarriage (standard): Steel Track
Track Shoe Width (standard): 24"
Track Rollers (per side): 7
Carrier Rollers (per side): 1
Working Range
Boom Length: 15' 1"
Stick (Arm) Length: 8' 2"
Maximum Digging Height: 28' 4"
Maximum Dumping Height: 20' 3"
Maximum Digging Depth: 18' 1"
Maximum Vertical Wall Digging Depth: 15' 11"
Maximum Reach at Ground Level: 27' 2"
Minimum Swing Radius: 8' 2"
